UFI Model 2283FT Family
of Fetrode™ Amplifiers
UFI Fetrode™ artifact reduction technology inserts a high-input-impedance, low-output-impedance buffer amplifier right at the active electrode site. This technique minimizes the bothersome noise artifacts induced by unavoidable electrode cable motion.
The 2283FT family of Fetrode bioamplifiers integrates the Fetrode technology to make optimal use of the improved bioelectric signals that Fetrodes can provide. UFI currently offers two different Fetrode amplifier configurations to cover a broad range of bioelectric signal requirements.

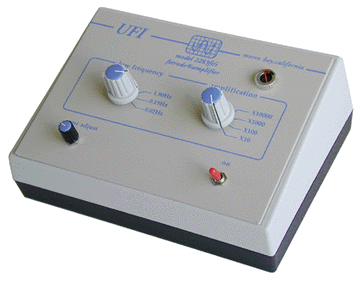

Model 2283FT adjustable Fetrode amplifier
The Model 2283FT is a stand-alone Fetrode bioamplifier that meets many physiological research needs. Adjustable gain and frequency response suit it to a wide variety of input signals and downstream instruments.
Model 2283FT specifications
- Channel gain: 10, 100, 1000, 10000 (switch selectable)
- Low frequency roll-off: 0.02, 0.15 and 1.5 Hz (switch selectable)
- High frequency roll-off: per customer requirements (50 Hz typical)
- Other controls: common mode rejection (CMR) trim, battery level indicator
- Output connector: BNC on back panel
- Power supply: 9V battery or optional wall-mount transformer
- Case size: 2.5" x 5" x 7" (64mm x 127mm x 178mm)
- Weight: 16 ounces (450g)
Model 2283FTi isolated adjustable Fetrode amplifier
The Model 2283FTi Fetrode amplifer is just the same as the Model 2283FT, except that it incorporates subject isolation using an off-the-shelf signal isolator.
Specifications unique to the Model 2283FTi
- Subject isolation: output stage includes off-the-shelf isolation module
- Power supply: wall-mount transformer
Review a representative Model 2283FT/2283FTi user manual
Published references to the Model 2283FT's
