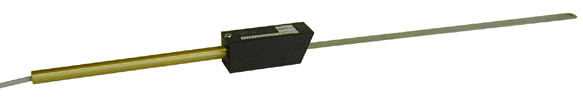

UFI Model 1040 Physiological
Displacement Transducer
The UFI Model 1040 Physiological Displacement Transducer is a semi-isotonic strain gauge and cantilever-beam device that measures very slight motions in many physiological preparations. The nickel-plated steel lever may be placed in any position, offering great flexibility. The Model 1040 features high linearity and nearly isotonic characteristics.
Model 1040 specifications
- Sensitivity range: 10 mm to 100 mm
- Signal source: silicon strain gauge
- Signal output configuration: full bridge
- Source impedance: 500 ohms (typical)
- Blade material: nickel-plated steel
- Body material: hard-anodized aluminum
- Body size: 3.75" x 1" x 1" (95mm x 25mm x 25mm)
- Blade size: 12" x 0.5" x 0.025" (305mm x 13mm x 0.64mm)
- Support rod size: 5" long x 0.375" diameter (127mm long x 9.5mm diameter)
- Lead length: 10 feet (305 cm)
- Weight without lead: about 2 ounces (57g)
