EZ-IBI-4
ECG + Interbeat Interval Monitor

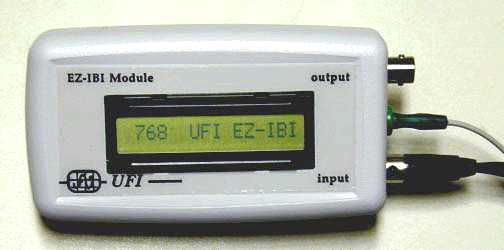

Note: Picture above does NOT show USB port output, now standard!
Connect three ECG electrodes from your subject to the EZ-IBI, then run a standard USB cable to your PC. With this simple setup, you can stream ECG to your PC at 1000 Hz., and record millisecond IBI as well. For recording ECG/IBI from your human or mammal subject, this is about as simple as it gets!
The compact, 9V battery-powered EZ-IBI features a 1000-Hz ECG sample rate, low-noise Fetrode™ ECG signal conditioning, 12-bit A-to-D with R-wave timing, and an isolated USB link to your PC. Easy-to-use Windows based data display, recording and review software is included with the system.
EZ-IBI features
- Uses three standard ECG electrodes
- Includes UFI's Fetrode™ artifact reduction technology to reduce noise from cable motion
- Supplies IBI at millisecond accuracy plus simultaneous ECG data sampled at 1000 Hz with 12-bit resolution
- USB port is isolated to enhance subject safety
- Includes PC software to display, save and print data
- Operates on 9V alkaline battery
- Plastic case is only 5" x 2.7" x 1.4"
